Thông tin sản phẩm

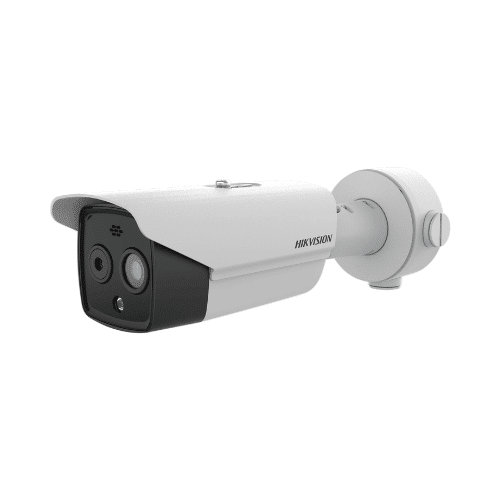

Camera IP 4MP Hikvision DS-2TD2628-3/QA Bảo Vệ Toàn Diện Với Công Nghệ Lưỡng Phổ
Camera IP 4MP Hikvision DS-2TD2628-3/QA là giải pháp giám sát lưỡng phổ nhiệt và quang học hiện đại, mang lại hình ảnh sắc nét và khả năng phát hiện thông minh. Đây là lựa chọn lý tưởng để bảo vệ chu vi và phòng cháy cho các khu vực như kho bãi, nhà xưởng và trung tâm thương mại.
Hình Ảnh Sắc Nét Với Cảm Biến Lưỡng Phổ
Cảm biến VOx UFPA 12 μm với độ phân giải 2560 × 1920 và NETD < 40 mK (25°C, F1.0) cung cấp hình ảnh nhiệt và quang học chất lượng cao, đảm bảo quan sát hiệu quả trong mọi điều kiện môi trường.
Phân Tích Video Thông Minh
Công nghệ phân tích video (VCA) hỗ trợ phân loại phương tiện và con người, giúp phát hiện nhanh các hành vi bất thường như xâm nhập hay vượt rào, bảo vệ tài sản của bạn 24/7.
Cảnh Báo Nhiệt Độ Chính Xác
Với khả năng đo nhiệt độ từ -20°C đến 150°C (-4°F đến 302°F), độ chính xác ± 8°C (± 14.4°F), camera cung cấp cảnh báo nhiệt độ bất thường, giúp ngăn chặn rủi ro cháy nổ kịp thời.
Công Nghệ Xử Lý Hình Ảnh Đỉnh Cao
Tích hợp công nghệ linear, histogram, self-adaptive thermal AGC mode, DDE và 3D DNR, camera tối ưu hóa hình ảnh, giảm nhiễu và mang lại chất lượng vượt trội.
Cảm Biến Chất Lượng, Độ Bền 10 Năm
Cảm biến cao cấp đi kèm bảo hành 10 năm, đảm bảo hiệu suất ổn định và độ tin cậy lâu dài cho hệ thống giám sát của bạn.
Đặt hàng ngay để trải nghiệm Camera IP 4MP Hikvision DS-2TD2628-3/QA và bảo vệ không gian của bạn với công nghệ tiên tiến!
Thông số kỹ thuật
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 × 192
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 40 mK (25°C, F1.0)
- Focal Length3.6 mm
- IFOV3.33 mrad
- Field of View50.0° × 37.3° (H × V)
- Min. Focusing Distance0.5 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/2.7″ Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Focal Length4.3 mm
- Field of View84.0° × 43.1° (H × V)
- Aperture (Range)F1.6
- WDR120 dB
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 30 m
- IR Intensity and AngleAutomatically adjusted
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy± 8°C (± 14.4°F)
- General FunctionFire detection, smoking detection, sun-reflection filter
- Video and Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
- Power Consumption
24 VAC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65″ × 4.18″ × 4.21″)
- Weight1550 g (3.41 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans24 m
- VCA Range for Vehicles72 m
