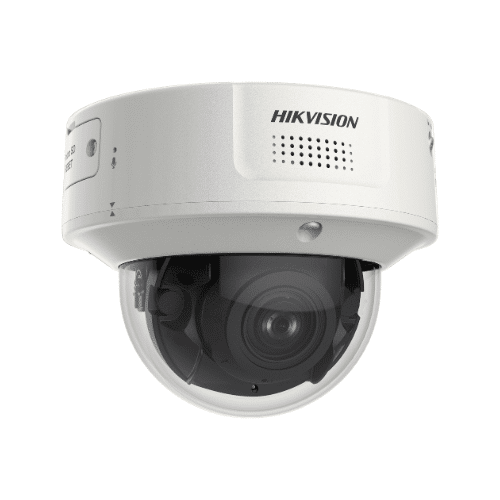

Camera IP 4MP Hikvision iDS-2CD7146G0-IZ(H)S(Y) An Ninh Vượt Trội Với Công Nghệ DeepinView
Camera IP 4MP Hikvision iDS-2CD7146G0-IZ(H)S(Y) là giải pháp giám sát hiện đại với công nghệ DeepinView, mang đến hình ảnh chất lượng cao và phân tích thông minh. Với thiết kế bền bỉ và hiệu suất vượt trội, đây là lựa chọn lý tưởng cho các khu vực cần bảo mật cao.
Độ Phân Giải 4MP Chất Lượng Cao
Với độ phân giải 2688×1520, camera cung cấp hình ảnh sắc nét, chi tiết. Công nghệ DarkFighter đảm bảo hiệu suất tuyệt vời trong điều kiện ánh sáng yếu, lý tưởng cho giám sát ban đêm.
Chống Ngược Sáng WDR 140 dB
Công nghệ WDR 140 dB giúp cân bằng ánh sáng, mang lại hình ảnh rõ ràng ngay cả trong môi trường ngược sáng mạnh, như lối ra vào hoặc khu vực có ánh sáng thay đổi.
Tiết Kiệm Băng Thông Với H.265+
Chuẩn nén H.265+ tối ưu hóa lưu trữ và băng thông, giảm chi phí vận hành mà vẫn đảm bảo chất lượng hình ảnh cao, phù hợp cho hệ thống giám sát quy mô lớn.
Thiết Kế Chống Chịu Mọi Thời Tiết
Đạt chuẩn IP67 chống nước, bụi và IK10 chống va đập, camera hoạt động bền bỉ trong mọi điều kiện. Tính năng sưởi (H) và chuẩn NEMA 4X (Y) đảm bảo hiệu suất trong môi trường khắc nghiệt.
Hỗ Trợ 5 Luồng Video Linh Hoạt
Với 5 luồng video, camera đáp ứng đa dạng nhu cầu từ xem trực tiếp, lưu trữ đến phân tích dữ liệu, mang lại giải pháp giám sát toàn diện.
Đặt hàng ngay để trải nghiệm Camera IP 4MP Hikvision iDS-2CD7146G0-IZ(H)S(Y) và nâng cao an ninh cho doanh nghiệp của bạn!
Thông số kỹ thuật
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Focal Length & FOV
2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°
8 to 32 mm, horizontal FOV 42.5° to 14°, vertical FOV 23.4° to 8°, diagonal FOV 49.7° to 17°
- FocusAuto,Semi-auto,Manual
- Iris TypeP-iris
- Aperture2.8 to 12 mm: F1.2 to F2.5, 8 to 32 mm: F1.7 to F1.73
- DORI
- DORI
Wide:
2.8 to 12 mm: D (Detect): 61.5 m, O (Observe): 24.4 m, R (Recognize): 12.3 m, I (Identify): 6.2 m
8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15.0 m
Tele:
2.8 to 12 mm: D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.1 m
8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80.0 m, I (Identify): 40.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- AI Open Platform
- Model Specification
Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)
- Video
- Main Stream
50 Hz:
25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for each stream
- Target CroppingYes
- e-PTZSupport Patrol and Auto Tracking settings
- Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)140 dB
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- Privacy Mask8 programmable polygon privacy masks
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Image StabilizationEIS
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Built-in MicrophoneYes, 2 built-in microphones
- Built-in SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
- Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power Output12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
- Smart Eventscene change detection,audio exception detection,defocus detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Deep Learning Function
- Multi-target-type Detection
Supports simultaneous detection and capture of human body, face, and vehicle,
Gets 7 face features,
Gets 13 human body features,
Gets 2 vehicle features,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,
Supports dynamic mosaic mask
- Face Capture
Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures,
Supports best shot and quick shot for capture mode,
Supports dynamic mosaic mask,
Gets 7 face features
- Face Comparison
Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,
Supports face library encryption
- MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
- People Counting
Supports Multi-Dimension People Counting,
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),
Supports real-time uploading and uploading by statistic cycle,
Supports generating daily, weekly, monthly or annually reports,
Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,
Supports face feature deduplication,
Supports people flow data replenishment
- Queue Management
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.
- Hard Hat Detection
Detects up to 30 human targets simultaneously
Supports up to 4 shield regions
- Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
- On/Off Duty Detection
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration
- General
- Power
12 VDC ± 25%, 0.97 A, max. 11.43 W,three-core terminal block,reverse polarity protection,
24 VAC +24.9%/-25%, 0.73 A, max. 10.67 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.19 A to 0.28 A, max. 11.92 W
- MaterialBase: metal, cover: metal
- DimensionØ144.3 mm × 114.1 mm (Ø5.7″ × 4.5″)
- Package Dimension244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
- WeightApprox. 990 g (2.0 lb.)
- With Package WeightApprox. 1425 g (3.1 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),
Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,one-key reset,mirror,password protection
- Cable Length0.25 m (0.8 ft.)
- Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
- Approval
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, EN50121-4,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013;IK10: IEC 62262:2002
- Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
- CCCommon Criteria, Assurance Level: EAL2 + ALC_FLR.2
- OtherPVC FREE
