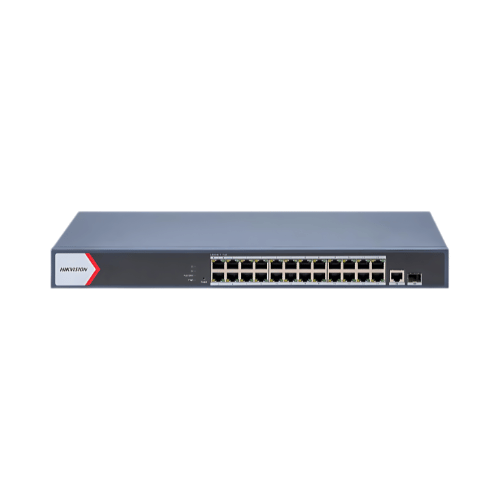

Switch 24 Port PoE HIKVISION DS-3E1526P-EI
Đặc điểm nổi bật
Switch HIKVISION DS-3E1526P-EI là thiết bị PoE với 24 cổng Gigabit, phù hợp cho các hệ thống giám sát và mạng doanh nghiệp đòi hỏi băng thông lớn và cấp nguồn PoE ổn định. Tích hợp các tính năng quản lý tiên tiến qua ứng dụng Hik-Partner Pro, sản phẩm mang đến hiệu suất cao, khả năng mở rộng linh hoạt và bảo vệ tối ưu.
Thông số kỹ thuật chi tiết
1. Cổng PoE và kết nối
- 24 × Gigabit PoE RJ45 Ports: Đáp ứng tốc độ cao cho các thiết bị kết nối.
- 1 × Gigabit RJ45 Port: Kết nối bổ sung cho hệ thống mạng.
- 1 × Gigabit Fiber Optical Port: Hỗ trợ truyền tải dữ liệu qua khoảng cách xa qua cáp quang.
- RJ45 Ports: Full duplex, MDI/MDI-X adaptive.
2. Công suất PoE
- Công suất mỗi cổng PoE: 30W, đáp ứng các thiết bị yêu cầu nguồn lớn.
- Tổng công suất PoE: 370W, hỗ trợ nhiều thiết bị đồng thời.
3. Hiệu suất mạng
- MAC Address Table: 8K, tối ưu quản lý các thiết bị mạng.
- Switching Capacity: 56 Gbps, đảm bảo tốc độ truyền tải cao.
- Packet Forwarding Rate: 41.66 Mpps, giảm thiểu độ trễ trong quá trình truyền dữ liệu.
- Internal Cache: 4.1 Mbits, tăng khả năng xử lý dữ liệu tạm thời.
4. Tính năng quản lý và bảo vệ
- Quản lý qua cloud: Hỗ trợ giám sát và quản lý từ xa qua ứng dụng Hik-Partner Pro.
- PoE Watchdog: Tự động phát hiện và khởi động lại các cổng PoE bị treo, đảm bảo hệ thống hoạt động ổn định.
- Chống sét: Các cổng PoE được bảo vệ với khả năng chống sét lên đến 6 KV.
- Cấp nguồn xa: Hỗ trợ cấp nguồn và truyền tải dữ liệu lên đến 300m, phù hợp cho các thiết bị lắp đặt ở vị trí xa.
5. Nguồn điện
- Nguồn sử dụng: 100~240 VAC, 50/60 Hz, Max. 6.5A, đảm bảo hoạt động liên tục và ổn định.
Ứng dụng thực tế
- Hệ thống giám sát an ninh: Cấp nguồn và kết nối cho nhiều camera IP trong hệ thống lớn.
- Hệ thống mạng doanh nghiệp: Kết nối và cấp nguồn PoE cho các thiết bị mạng văn phòng hoặc nhà máy.
- Tòa nhà thông minh: Tích hợp trong các hệ thống mạng IoT với yêu cầu quản lý linh hoạt và hiệu suất cao.
Tổng kết
Switch HIKVISION DS-3E1526P-EI là sự lựa chọn lý tưởng cho các hệ thống mạng lớn với yêu cầu kết nối Gigabit và cấp nguồn PoE mạnh mẽ. Các tính năng như PoE Watchdog, khả năng chống sét 6 KV, và quản lý qua Hik-Partner Pro giúp đảm bảo hiệu suất và độ tin cậy cho mọi ứng dụng mạng.
Thông số kỹ thuật
- General
- ShellMetal material
- Net Weight3.1 kg (6.83 lb)
- Gross Weight3.3 kg (7.27 lb)
- Dimensions (W × H × D)440.0 mm × 220.8 mm × 44.0 mm (17.32” × 8.69” × 1.73”)
- Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100~240 V AC, 50/60 Hz, Max. 6.3 A
- Installation ModeRack (equipped with mounting ears)
- Max. Power Consumption400 W
- Power Consumption in Idle30 W
- Surge Protection6 KV
- Network Parameters
- Ports24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity56 Gbps
- Packet Forwarding Rate41.66 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPoE: Ports 1 to 24
- Max. Port Power30 W
- PoE Power Budget370 W
- Software Function
- Long Range
Ports 1 to 24: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- PoE WatchdogPorts 1 to 24: auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation group(s).
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
- Port Isolation
Ports 1 to 24: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- Approval
- EMCCE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
